12kv Indoor 1 Phrase MV Current Transformer With Epoxy Resin Vacuum Cast

Name: 12kv Indoor 1 Phrase MV Current Transformer With Epoxy Resin Vacuum Cast
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : LZZBJ9-12/175b4/G1

Certification : Kema,CE,SGS,TUV

Place of Origin : Shenzhen

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : Plywood

Rated insulation level : 12/28/75 kv

Installation site : Indoor

Type : Dry Type

Standard : IEC60044--1(IEC 61869-1&2)

Material : Epoxy Resin

Contact Now

12kv Indoor Single-Phrase MV Current Transformer with Epoxy Resin Vacuum Cast

1. Product Introduction:

LZZBJ9-12/150b/4 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

2. Technical Data:

Main technical parameter

Rated insulation level: 12/28/75kV
Rated frequency: 50hz/60hz
Installation Site:Indoor
Standards: IEC60044-1.2003

3. Specification:

Rated transformation ratio (A)	Accuracy classes combination	Rated output(VA)			(ALF)	(FS)	Short-time thermal current Ith(kA/S)	Rated dynamic current Idyn(kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2(S)/0.5/10P 0.2(S)/0.5/10P/10P	10 15	15	15 20	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200～1500/5							80	160
1500～2000/5							100	160
2500～3000/5							100	160

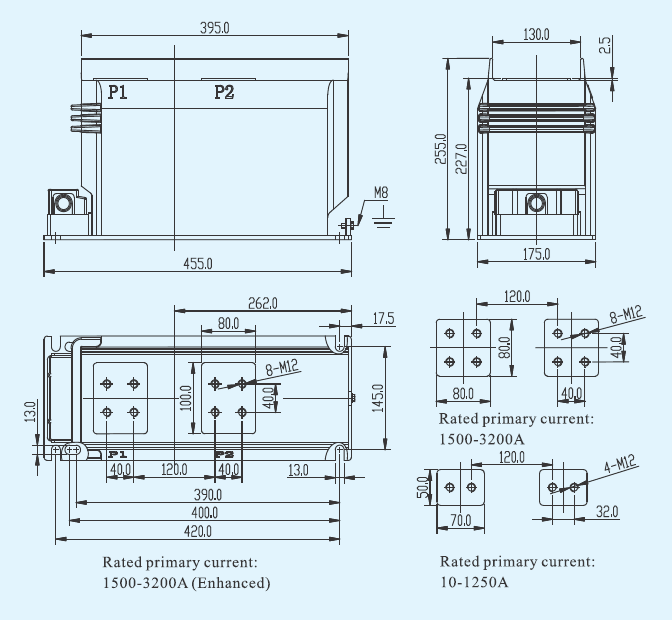

4. Outline Drawing:

12kv Indoor 1 Phrase MV Current Transformer With Epoxy Resin Vacuum Cast

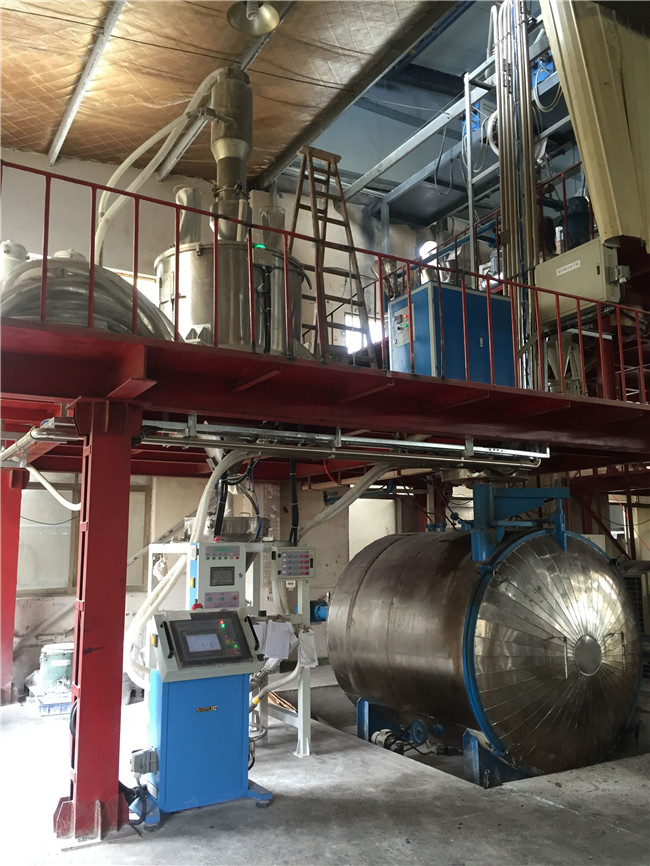

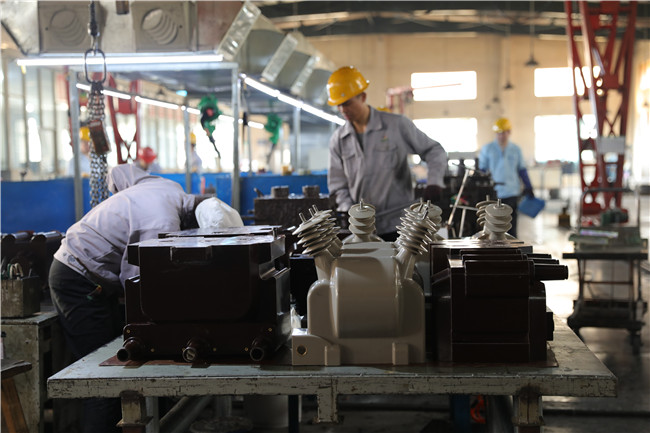

5.Photos:
