Toroidal Type Instrument Transformer Manufacturers With Magnetic Material

Name: Toroidal Type Instrument Transformer Manufacturers With Magnetic Material
Brand: Chuangyin
Price: 1 USD

Toroidal Type Instrument Transformer Manufacturers With Magnetic Material Manufactures

Brand Name : Chuangyin

Model Number : LZZW5-17.5

Certification : Kema,CE,SGS,TUV

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Highest Vote : Up to 110KV

Rated Insulation Level : 17.5/38/95KV

Installation Site : Outdoor

Rated Frequency : 50/60HZ

usage : Measuring Electric Capacity, Current

Magnetic : Magnetic Material

Type : Toroidal Type

Contact Now

17.5kV Medium Current Transformer Single-Phase Epoxy Resin Type MV/LV/HV CT VT PT Current Usage Magnetic Material

1. Product Introduction:

Epoxy resincasting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.
Be suitable for measuring electric capacity, current and protective relaying in
the power system of 17.5kV

Technical Data

1. Installation site: Outdoor
2, Rated frequency: 50/60Hz
3. Rated Insulation Level:17.5/38/95KV
4, Technical standard accords with: IEC 60044-1
IEC 61869-1&2

Specification:

Item	Specification	Unit	Data
1	Um	kV	17.5
2	Rated Insulation Level	kV	17.5/38/95

Rated Transformation Ratio(A)	Accuracy Classes Combination	Rated Output(VA)
		0.2(S)	0.2	0.5S	0.5
75-100/5A	0.2S,0.2,0.5S,0.5	10 15	10 15	10 15 20	10 15 20
150/5A
200/5A
300/5A
400/5A
600/5A
800/5A
1000/5A
1200-1600/5A

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

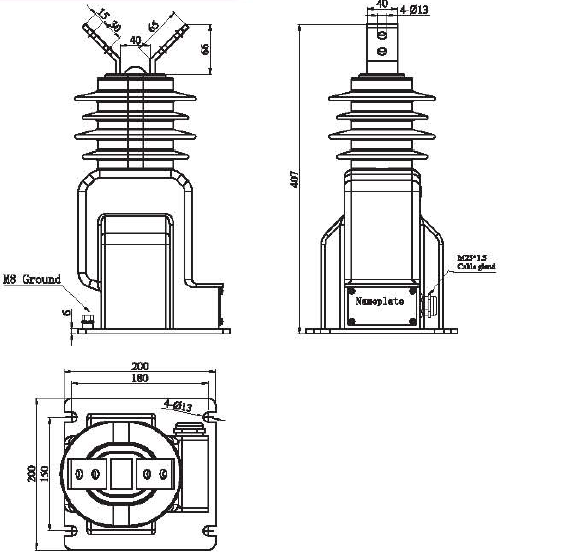

Outline drawing

Toroidal Type Instrument Transformer Manufacturers With Magnetic Material
