630A 15kv , 24kv And 35kv Separable Tee Connector C Interface Type

Name: 630A 15kv 24kv And 35kv Separable Tee Connector C Interface Type
Brand: Chuangyin
Price: 1 USD

630A 15kv , 24kv And 35kv Separable Tee Connector C Interface Type Manufactures

Brand Name : Chuangyin

Model Number : CYSESBQJ(01)-15/630-25-50

Certification : Type test report

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000Pcs/week

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

type : 630A

color : Black

cable section : 25 to 630mm

interface Type : C

use : protect apparatus

material : Insulating Layer

Contact Now

CYSESBQJ(01)-15/630-25-50 630A 15kv,24kv and 35kv tee connector Separable Connectors

Chuangyin® Tee Connector is widely applicable for terminating polymeric insulated cable to dead front apparatus such as transformers, switchgear, and other equipment in 630 A power network.

Cable section: 25 to 630mm²

Voltage rating: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV, 12/20 (24) kV, 12.7/22 (24) kV, 18/30 (36) kV, 20.8/36 (42) kV, 21/35 (40.5) kV, 26/35 (40.5) kV

The interface designed to comply with EN 50180 / EN 50181 630 A interface type C and HD 629.1, IEC 60502.4, GB/T 12706.4 etc.

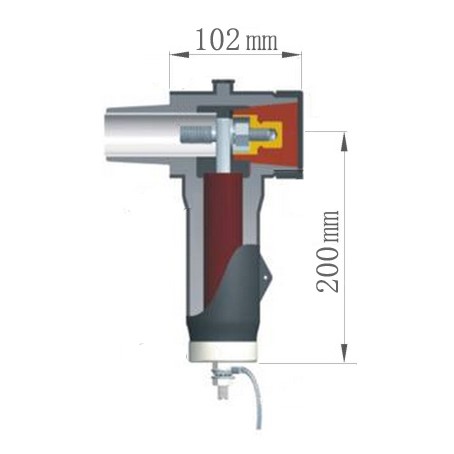

Construction

1. Insulating Plug

2. End Cap

3. Grounding Tab

4. Lug Stud

5. Conducting Insert Adapter

6. Insulating Layer

7. Conducting Shield

Technical Data

Item	Parameters
Voltage Class	15 kV	24 kV	35 kV
Rated Current	630 A	630 A	630 A
AC Withstand Voltage 5min	39 kV	54 kV	117 kV
DC Withstand Voltage 15min	35 kV	48 kV	104 kV
Partial Discharge	15 kV, ≤10 pC	20 kV, ≤10 pC	45 kV, ≤10 pC
BIL	95 kV	125 kV	200 kV
Screen Resistance	≤ 5000 Ω	≤ 5000 Ω	≤ 5000 Ω
Cable Section	25-400 mm²	35-500 mm²	50-630 mm²
Interface Type	C	C	C

Kit Contents

Tee Connector	Wrench Stud
Lug	Sand Bar
Adapter	Semi-conducting Tape
End Cap	Silicone Grease
Insulating Plug	Wipers
Probe	Tape
Bail Assembly	Installation Instruction

Ordering Instructions

Part Number	Cable Section (mm²)	Diameter over Insulation (mm)	Code
CYS-E(S)BQJ(01)-15/630-25-50	25-50	16-20	A
CYS-E(S)BQJ(01)-15/630-70-95	70-95	20-23.1	B
CYS-E(S)BQJ(01)-15/630-120-150	120-150	23-26.1	C
CYS-E(S)BQJ(01)-15/630-185-240	185-240	25.8-30	D
CYS-E(S)BQJ(01)-15/630-300	300	30.4-32.3	E
CYS-E(S)BQJ(01)-15/630-400	400	33-35.4	F
CYS-E(S)BQJ(01)-24/630-35-50	35-50	18-22	A
CYS-E(S)BQJ(01)-24/630-70-95	70-95	22-25.1	B
CYS-E(S)BQJ(01)-24/630-120-150	120-150	25-28.1	C
CYS-E(S)BQJ(01)-24/630-185-240	185-240	27.8-30	D
CYS-E(S)BQJ(01)-24/630-300	300	32.4-34.4	E
CYS-E(S)BQJ(01)-24/630-400	400	35-37.4	F
CYS-E(S)BQJ(01)-24/630-500	500	38.4-40.3	G
CYS-E(S)BQJ(01)-35/630-50-70	50-70	30-33.4	A
CYS-E(S)BQJ(01)-35/630-95-120	95-120	33.6-36.6	B
CYS-E(S)BQJ(01)-35/630-150-185	150-185	36.4-40	C
CYS-E(S)BQJ(01)-35/630-240-300	240-300	40-44.3	D
CYS-E(S)BQJ(01)-35/630-400-500	400-500	45-50.3	E
