Clamp On Split Core Current Transformer Open Distributed Measurement Systems

Name: Clamp On Split Core Current Transformer Open Distributed Measurement Systems
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : CY-QCT02-15

Certification : Test Report

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Type : Split Core Current Transformer

Feature : Maximum measuring current up to 130A

Ampere : 5A/100A

Application : Measure Together With Other Kinds of Instruments

Operating Temperature : 0 to 500C (32-1220F)

Operating Humidity : 580%RH

Contact Now

100-3000A 50/60Hz Clamp-on Current Transformer Current Transformer / Open type CY-QCT01

1.Product Introduction:

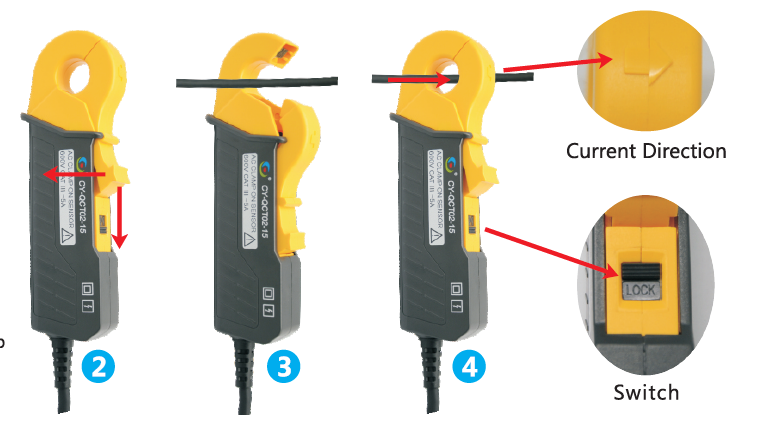

The "QCT02-15 Clamp-on Current Transformer" is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class.

Feature:

1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 130A

Application:

1. Power quality monitoring
2. CT secondary current detection
3. Smart logger
4. Distributed measurement systems

General Data:

1. Operating temperature & humidity: 0 to 500C(32-1220F),580%RH(No condensate)
2. Storage temperature & humidity: -10 to 600C(14-1400F), 580%RH(No condensate)
3. Operating environment: Indoor, altitude up to 2000 meters
4. Standards Safety: IEC61010-1:2001,300V CAT III

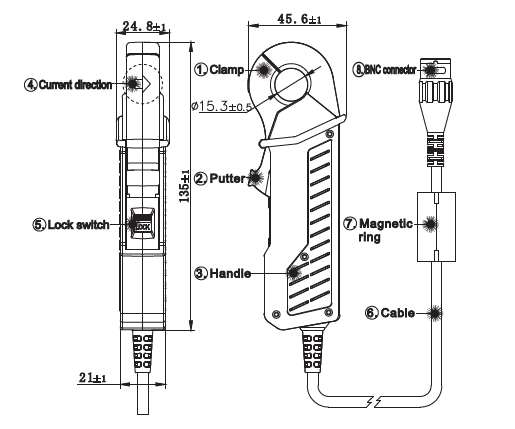

Dimension:

Clamp On Split Core Current Transformer Open Distributed Measurement Systems
