Medium Voltage Indoor Voltage Transformer For Gas Insulated Switchgear Up To 110KV

Name: Medium Voltage Indoor Voltage Transformer For Gas Insulated Switchgear Up To 110KV
Brand: CY-Group
Price: 1 USD

Brand Name : CY-Group

Model Number : JDZX11-36R

Certification : KEMA CE ISO SGS TUV UC3

Place of Origin : China

MOQ : 1pcs

Price : NEGOTIABLE

Payment Terms : L/C, TT,D/A,D/P

Supply Ability : 3600000pcs/year

Delivery Time : 3-8 days

Packaging Details : Plymood

Material : Epoxy Resin

Voltage : 36KV

Rated Frequency : 50/60Hz

Installation site : Indoor

Rated primary voltage (kV) : 33/ 35

Standard : IEC60044-2.2003 or IEC61869-1&3

Burden power factor : cos￠=0.8(lagging)

Rated insulation level(kV) : 36/70/170 (40.5/95/200)

Rated voltage of residual voltage windings : 100/ 3V or 110/ 3V or 115/ 3V or 120/ 3V

Contact Now

High Quality MV Voltage Transformer JDZX11-36R Indoor Voltage Transformer for Gas Insulated Switchgear Up to 110KV

JDZX11-36R voltage transformer, epoxy resin casting and single pole insulated VT, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and highest voltage for equipment 36 kV (Up to 40.5kV), The transformers can be produced according to the standard IEC60044-2:2003 or newest IEC standard IEC61869-1&3.

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs..

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZX11-36R	33/ 35/	0.1/ 0.11/	0.2	30	400	36/70/170 (40.5/95/200)
			0.5	50
			1	100
		0.1//0.1/3 0.11//0.11/3	0.2/6P(3P)	25/100
		0.1//0.1/3 0.11//0.11/3	0.5/6P(3P)	50/100
		0.1//0.1//0.1/3 0.11//0.11//0.11/3	0.2/0.5/6P(3P)	15/30/100
JDZX11-36R	34.5/	0.12//0.12/3	1.0/3P	100/50	400	36/70/170

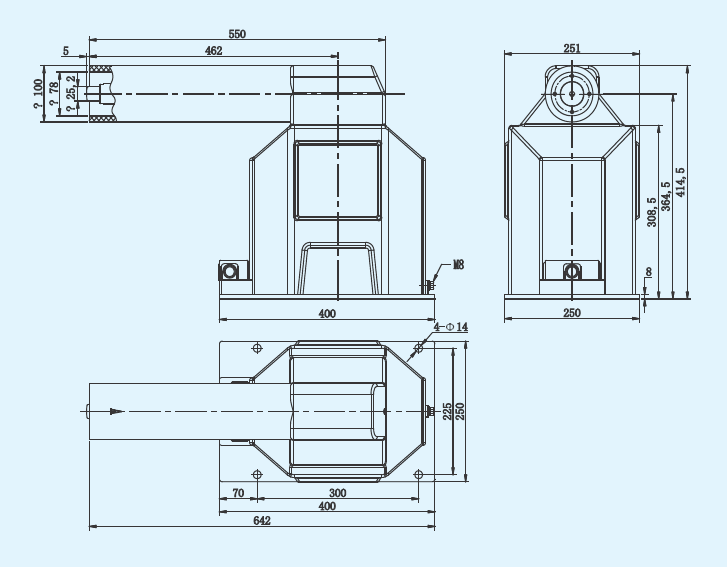

Outline drawing

Medium Voltage Indoor Voltage Transformer For Gas Insulated Switchgear Up To 110KV
