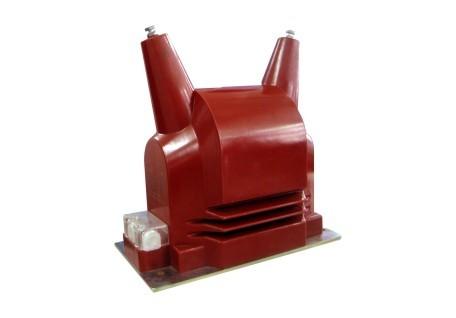

Dry Type MV Potential Transformer Suppliers IEC60044-2.2003 Standard

Name: Dry Type MV Potential Transformer Suppliers IEC6004422003 Standard
Brand: CY-Group
Price: 1 USD

Dry Type MV Potential Transformer Suppliers IEC60044-2.2003 Standard Manufactures

Brand Name : CY-Group

Model Number : JDZ-17.5(24)

Certification : KEMA CE ISO SGS TUV UC3

Place of Origin : China

MOQ : 1pcs

Price : NEGOTIABLE

Payment Terms : L/C, TT,D/A,D/P

Supply Ability : 3600000pcs/year

Delivery Time : 3-8 days

Packaging Details : Plymood

Material : Epoxy Resin

Voltage : 24KV

Rated Frequency : 50/60Hz

Installation site : Indoor

Rated primary voltage (kV) : 13.8 15 20 22

Rated secondary voltage : 0.1/0.11 0.11/0.22

Standard : IEC60044-2.2003

Burden power factor : cos￠=0.8(lagging)

Rated insulation level(kV) : 17.5/38/95 24/50/125 24/65/125

Rated voltage of residual voltage windings : 100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

Contact Now

Dry type MV Voltage Transformer JDZ-17.5(24) Voltage transformer CE/TUV/SGS/KEMA Outdoor/Indoor Use Epoxy Resin Cast

JDZ-17.5(24) voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5 kV (Up to 24kV).

The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs..

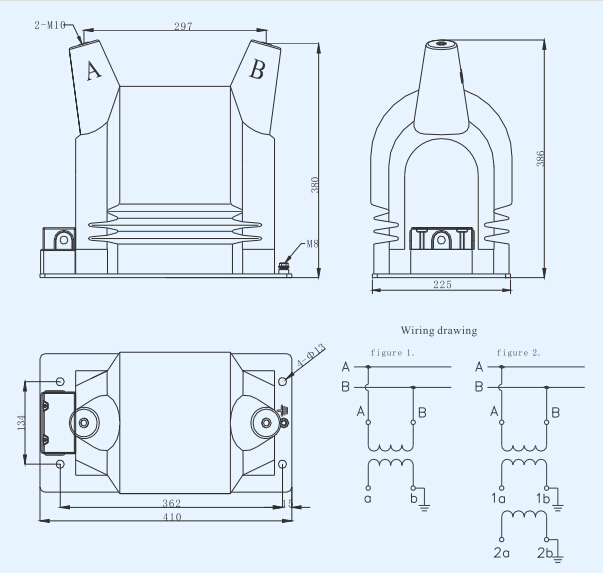

Outline drawing

Dry Type MV Potential Transformer Suppliers IEC60044-2.2003 Standard
