100-600A 50Hz Split Core Ac Current Sensor Transformer / Open Type Foot Or Busbar Mounted

Name: 100600A 50Hz Split Core Ac Current Sensor Transformer Open Type Foot Or Busbar Mounted
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : CY-KCT02

Certification : Test Report

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Type : Split Core Current Transformer

Feature : Available in a wide range of transformer ratings

Ampere : 50-300A

Usage : Multi function electricity energy meter

Application : Switchgear

Utilization : Energy Management Systems

Contact Now

100-600A 50Hz Split Core Current Transformer / Open type CY-KCT02

1.Product Introduction:

The "KCT02" Split Core Current Transformers" are designed for easy installed without the need for dismantling the primary busbar or cables. They output 5A or 1A standard secondary currents which can directly match the input terminals of electric energy meter and measure and control instruments in power system. They are applied to electric measure and control equipments like power electric energy meter, switch cabinet, control cabinet, etc.

Feature:

1. High quality comprensive measurements
2. Available in a wide range of transformer ratings
3. Accuracy up to Class 0.5
4. Foot or Busbar mounted

Application:

1. Switchgear
2. Energy Management Systems
3. Instrumentation Equipment
4. Split Core Current Transformers are designed for assembly to an existing electrical installation no need to dismantle the primary busbar or cables.

Technical Data:

Highest voltage for equipment	1	720V (0.72kV) maximum	1
Power-frequency withstand voltage	1	3kV for 1 minute	n
Primary current Ipn	1	100-6000A	n
Secondary voltage	1	333mV or others	n
Frequency	1	50/60Hz	n
Accuracy class	1	Up to 0.5	n
Continuous thermal current	1	1.2 Ipn	n
Mounting hardware		Plug-in metal feet for wall or base
		mounting or moulded busbar mounting
Enclosure		r i Flame retardant grade classified UL 94V-0
Insulation class	1	E
Ambient temperature	1	-20°Cto+70°C	n
Standards	1	IEC/EN 60044-1, GB1208, IEEE C57.13	n

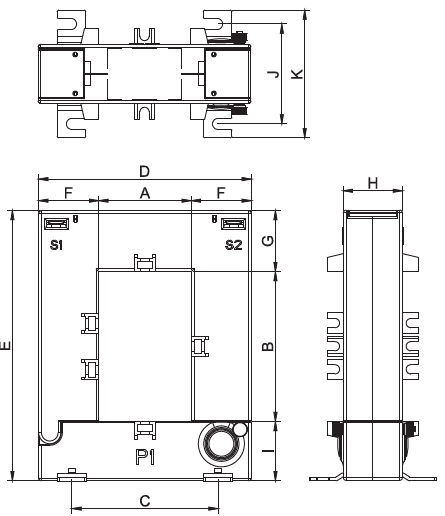

Dimension:

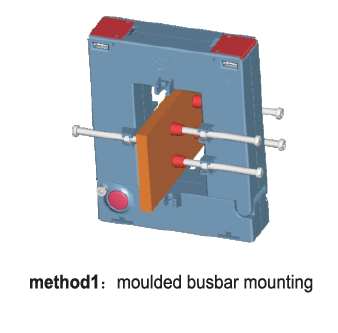

Usage Instruction:

100-600A 50Hz Split Core Ac Current Sensor Transformer / Open Type Foot Or Busbar Mounted
