Open Smart Grid Split Core Current Transformer Small Size 75-600A

Name: Open Smart Grid Split Core Current Transformer Small Size 75600A
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : CY-KCT01A-16

Certification : Test Report

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Type : Split Core Current Transformer

Rated Insulation Level : 720V

Characteristic : Has Be To Waterproof

Rated secondary current : 5A/1A

Feature : With Over-Voltage Protection In Open Circuit

Application : Switch Cabinet

Contact Now

75-600A 50Hz Split Core Current Transformer / Open type CY-KCT01A

1. Product Introduction:

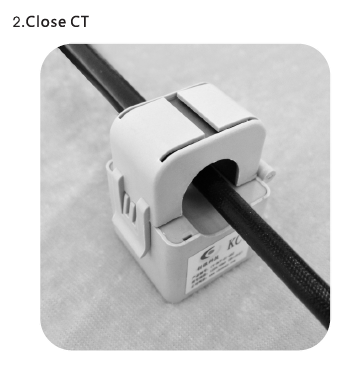

The "KCT01A Split Core Current Transformers" are designed for easy installed without the need for dismantling
the primary busbar or cables. They output 5A or 1A standard secondary currents which can directly match the
input terminals of electric energy meter and measure and control instruments in power system. They are applied
to electric measure and control equipments like power electric energy meter, switch cabinet, control cabinet, etc.

Feature:

1. Small size,light weights and exquisite appearance
2. Easily install, no need to disconnect primary busbar
3. With over-voltage protection in open circuit

Application:

1. Electric energy meter
2. Smart grid
3. Switch cabinet
4. Power measurement and control system

Attention:

1. The iron core binding surface has to be waterproof.
2. The iron core surface needs to be polished to remove the rust and coated with rust-proof grease when the core surface rusted.
3. Keep clean and without debris on core binding surface.
